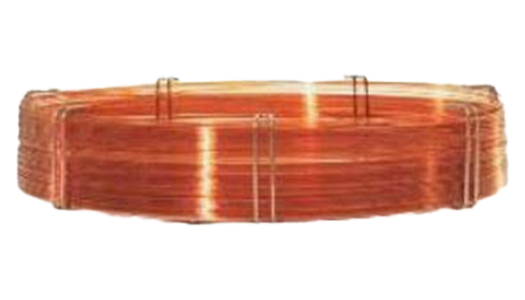

Premium Polysiloxane Columns

Polysiloxanes are the most common stationary phases. They are available in the greatest variety and are stable, robust and versatile. Standard polysiloxanes are characterized by the repeating siloxane backbone. Each silicon atom contains two functional groups. The type and percent level of substitution of the groups distinguish each stationary phase and its properties.

Premium Polysiloxane Columns
Request Info/Quote

Highlight of the Product Offering

DB-1

  • 100% Dimethylpolysiloxane
  • Non-polar
  • Excellent general purpose column
  • Wide range of applications
  • Low bleed
  • High temperature limit
  • Bonded and cross-linked
  • Solvent rinsable
Request Info/Quote

HP-1

  • 100% Dimethylpolysiloxane
  • Non-polar
  • Excellent general purpose column – "Industry Standard"
  • Wide range of applications
  • Superior performance for low molecular weight alcohols (<C5)
  • High temperature limit
  • Bonded and cross-linked
Request Info/Quote

CP-sil 5 CB

  • 100% Dimethylpolysiloxane
  • Non-polar
  • General purpose phase
  • Bonded and cross-linked
  • Solvent rinsable
  • Available in fused silica or UltiMetal
  • Separation almost entirely based on boiling points, making this column suitable for a wide range of applications with a broad temperature range
Request Info/Quote

Ultra 1

  • 100% Dimethylpolysiloxane
  • Non-polar
  • Equivalent to HP-1 with tighter specifications for retention index and capacity factors
  • Bonded and cross-linked
  • Solvent rinsable
Request Info/Quote

Ultra 2

  • (5%-Phenyl)-methylpolysiloxane
  • Non-polar
  • Equivalent to HP-5 with tighter specifications for retention index and capacity factors
  • Bonded and cross-linked
  • Solvent rinsable
Request Info/Quote

DB-5

  • (5%-Phenyl)-methylpolysiloxane
  • Non-polar
  • Excellent general purpose column
  • Wide range of applications
  • Low bleed
  • High temperature limit
  • Bonded and cross-linked
  • Solvent rinsable
Request Info/Quote

HP-5

  • (5%-Phenyl)-methylpolysiloxane
  • Non-polar
  • Excellent general purpose column
  • Wide range of applications
  • High temperature limit
  • Bonded and cross-linked
  • Solvent rinsable
  • Wide range of column dimensions available
Request Info/Quote

CP-sil 8 CB

  • (5%-Phenyl)-methylpolysiloxane
  • Non-polar
  • General purpose phase
  • Bonded and cross-linked
  • Solvent rinsable
  • Low bleed
  • High column-to-column reproducibility
Request Info/Quote

CP-sil 13 CB

  • 14% Phenyl/86% dimethylpolysiloxane
  • Mid polarity phase
  • Specially developed for the analysis of medium polarity compounds
  • Ideal for confirmational analyses using ECD
  • Bonded and cross-linked
  • Solvent rinsable
  • Supplied with an EZ-GRIP to simplify column installation, coupling and operation
Request Info/Quote

DB-35

  • (35%-Phenyl)-methylpolysiloxane
  • Mid polarity – slightly more polar than HP-35
  • Low bleed
  • Inert to active solutes
  • Ideal for confirmational analyses
  • Bonded and cross-linked
  • Solvent rinsable
Request Info/Quote

HP-35

  • (35%-Phenyl)-methylpolysiloxane
  • Mid polarity – slightly less polar than DB-35
  • Inert to active solutes
  • Ideal for confirmational analyses
  • Bonded and cross-linked
Request Info/Quote

DB-17

  • (50%-Phenyl)-methylpolysiloxane
  • Mid polarity – slightly more polar than HP-50+
  • Excellent for confirmational analyses
  • Bonded and cross-linked
  • Solvent rinsable
Request Info/Quote

HP-50+

  • (50%-Phenyl)-methylpolysiloxane
  • Mid polarity – slightly less polar than DB-17
  • Excellent for confirmational analyses
  • Bonded and cross-linked
Request Info/Quote

CP-sil 24 CB

  • 50% Phenyl/50% dimethylpolysiloxane
  • Mid polarity phase
  • Specially suitable for analysis of amines, drugs and pesticides
  • Ideal for analysis using ECD
  • Excellent confirmation column in combination with CP-Sil 5 CB or CP-Sil 8 CB
  • Bonded and cross-linked
Request Info/Quote
