3D X-ray Microscopy for Material Science

High-Capacity 3D X-ray Microscopy

The SKYSCAN 1273 is Bruker’s latest benchtop 3D X-ray microscope based on micro computed tomography (Micro-CT) technology. Samples with up to 500 mm length, 300 mm diameter, and a maximum weight of 20 kg can be accommodated, a new standard for non-destructive testing (NDT) with benchtop instruments.

The new MULTISCALE X-ray nanotomograph SKYSCAN 2214 covers the widest range of object sizes and spatial resolutions in one single instrument. It opens unique possibilities for 3D imaging and exact modeling of geological materials in oil and gas exploration, composite materials, Li batteries, fuel cells, electronic assemblies, as well as ex-vivo preclinical applications like in lung imaging or tumour vascularization.

High-resolution 3D X-ray Microscopy

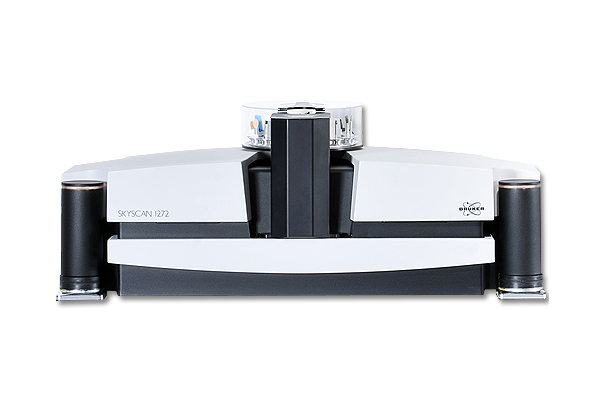

Our SKYSCAN 1272 can nondestructively visualize up to 209 Megapixel (14450x14450 pixels) virtual slices through objects, more than 2600 such slices after a single scan using a 16-megapixel camera in triple offset mode. Thanks to phase-contrast enhancement, object details as small as 0.35um can be detected.

The SkyScan1275 is specially designed for fast scanning using new advances in the technology of X-ray sources and efficient flat-panel detectors. Shortening the distance between source and detector and very fast camera readout opens the possibility for reducing scan time down to a few minutes without compromising image quality. Current developments in fast reconstruction accelerated by graphics cards give an additional gain in performance and speed.
