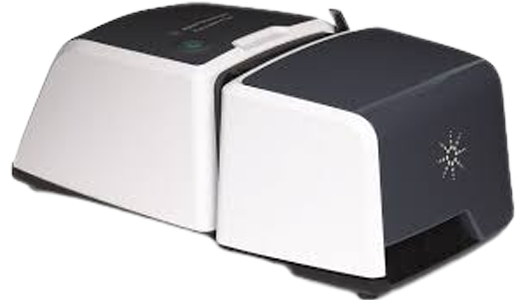

Agilent FTIR ASTM D7575

Standard method for determining total oil and grease in water, using FTIR and solvent free extraction by clearshot extractor.

• No Solvent required for the extraction, No Need for Chemical Hoods, Minimizes Glassware and Lab Space.
• Rapid and simple samples extraction
• Low sample analysis cost
• Accurate and precise results
• Ability to identify the specific oil or type of oils in the sample
• Supplying certified Solid-state Calibration Standard Devices (CSDs) to prepare your calibration curve.
• Cover wide range of TOG from 0.2 till 1000 ppm.

• Mid-IR Spectrometers with special analysis to carryout heavy workload and covering different samples fields.
• Easy to carry for using outside the lab. and field location
• Interferometer: 25 mm, permanently aligned, Michelson, 45°, mechanical flexure
• Enclosure: Sealed and desiccated optics system
• Communication by USB-2
• Size: 16 x 31 x 13 cm (6 x 12 x 5 inches) (W x D x H) and Weight: 3.8 kg (8 lbs.)
• Power: 110 – 240 V AC, 60/50 Hz
• Spectral range: KBr 7000–350 cm-1 and ZnSe 5100–600 cm-1
• Sample interface and accessories: DialPath (30 to 250 µm), TumblIR, Diamond ATR, Diffuse Reflectance, Transmission, Germanium ATR, 5 Bounce ZnSe ATR, 10 Degree SRA, 45 Degree SRA

• Collect and acidify your samples at PH2, put the sample in Ultrasonic and heated to 40 °C for 20 minutes. then collect 10 ml sample by syringe.
• Connect syringe to clearshot extractor, the extractor will trap oil and grease inside its membrane and release water.
• Introduce the extractor with oil sample to FTIR card holder and measure by FTIR.
• Open TOG quant method in Microlab software and measure your sample at 2920 Cm-1.

• Very accurate and reliable results in very short time
