Micro GC Biogas Analyzers

Biogas is produced by the anaerobic bacterial breakdown of organic matter. The feedstocks of biogas include different types of organic material. Wastewater, manure, organic industrial waste, and energy crops are the most common feedstocks.

There are two types of analyzers based on the 990 Micro GC platform for biogas analysis. The 990 Micro GC biogas analyzer is recommended for pure biogas analysis. It consists of two analytical channels. One is a 10 m Agilent J&W CP-Molesieve 5Å channel for permanent gas, carbon monoxide, and methane analysis, the other is a 10 m Agilent J&W CP-PoraPLOT U channel for carbon dioxide and hydrogen sulfide analysis.

Request Info/Quote

FEATURES

Application	Biogas Analysis
Measuring Objects	Gas sample / LPG / LNG

Biogas Analyzer Variants

The analyzer is based on two variants:

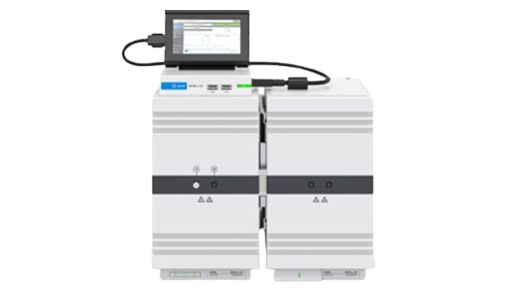

Agilent 990 Micro GC Biogas Analyzer
Agilent 990 Micro GC Biogas Analyzer Extended

System Description

Channel 1: Fixed gases analysis
This channel is configured to analyze fixed gases with backflush option, which may include He, Ne, H2, CO, CH4, O2 and N2

Channel 2: CO2, H2S and C2 to C3 hydrocarbons
This channel is configured to analyze CO2, H2S and light hydrocarbons with backflush option.

Channel 3: C3 to C6 hydrocarbons
This channel is configured to analyze hydrocarbons up to C3 to C6 with isomers.

Channel 4: C6 to C9 hydrocarbons
This channel is configured to analyze heavy hydrocarbons up to C9.
