Elevate Your Essential Oil Production with Green Technology Discover ETHOS X

GBA are excited to introduce you to a groundbreaking advancement in essential oil extraction – the ETHOS X line of natural products from Milestone, designed specifically for enhanced production with a green and sustainable approach. The Milestone’s long-standing commitment to use of microwave technology for solvent-free extraction from botanical material has led to the ETHOS X 2.0 and ETHOS XL, two dedicated solutions for craft applications as well as medium and large-scale processors.

Milestone ethos x Essential oil for Extraction
Request Info/Quote

Enhancing production capacity with green extraction

The technology of ETHOS X family incorporate the solvent-free and green approach whilst significantly enhancing the production capacity. The use of microwave technology for solvent-free extraction from botanical material was pioneered by Milestone years ago, with the ultimate goal to offer a more up-to-date and “green” approach to this application.

  • HIGHER EXTRACT
  • QUALITY FASTER EXTRACTION PROCESS
  • NO BY-PRODUCTS
  • NO SOLVENT REQUIRED
  • ZERO PURIFICATION

The ETHOS X line offers high microwave power in combination with a rotating reactor to expedite the extraction process and ensure even heating. A typical extraction takes between 60 and 90 minutes. The dedicated user-interface controls the extraction parameters, ensuring a high level of safety. The built-in methods facilitate its implementation into the workflow. The two condensers with the dedicated burette, ensure complete condensation, reflux of the water into the reactor and fast separation of the oils.

Request Info/Quote

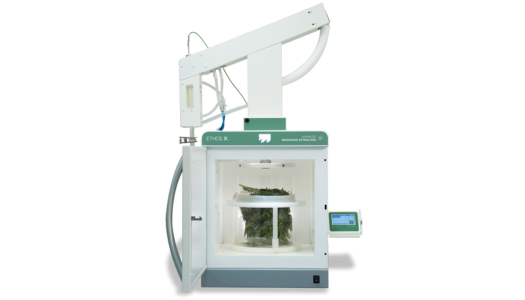

ETHOS X 2.0

The ideal tool to expand your craft production
The ETHOS X 2.0 has been designed with the aim of simplifying the extraction process for craft applications and medium level commercial companies. The sequence of operation starts by placing botanical material into the large reactor (15 L) and in just a few seconds the extraction process begins. The high microwave energy allows for a quick evaporation of the compounds along with the water content of the plant material. The temperature sensor ensures a proper distillation flow, so that the oils and water re-condense into a dedicated water-cooled apparatus where they are separated into two phases based on their different density. The oils can then be easily collected into a dedicated flask.

Request Info/Quote

ETHOS XL

Enhancing production capacity of premium products

The ETHOS XL has been designed to process large volumes of botanical material through a simplified workflow. The process starts with the loading of the material into bags and then into the drum of the system. The system then automatically loads the water into the bottom of the cavity and starts the heating process. The high microwave power along with the dedicated heating pads ensure that the distillation conditions are quickly reached. The temperature sensor controls the entire process to maximize the extraction efficiency and to ensure reproducibility. At the competition of the run, the extracts are being separated from the water in the dedicated burette, so that the operator can easily collect the extract.

Request Info/Quote
